Plastic Butterfly Valves

Plastic Butterfly Valves

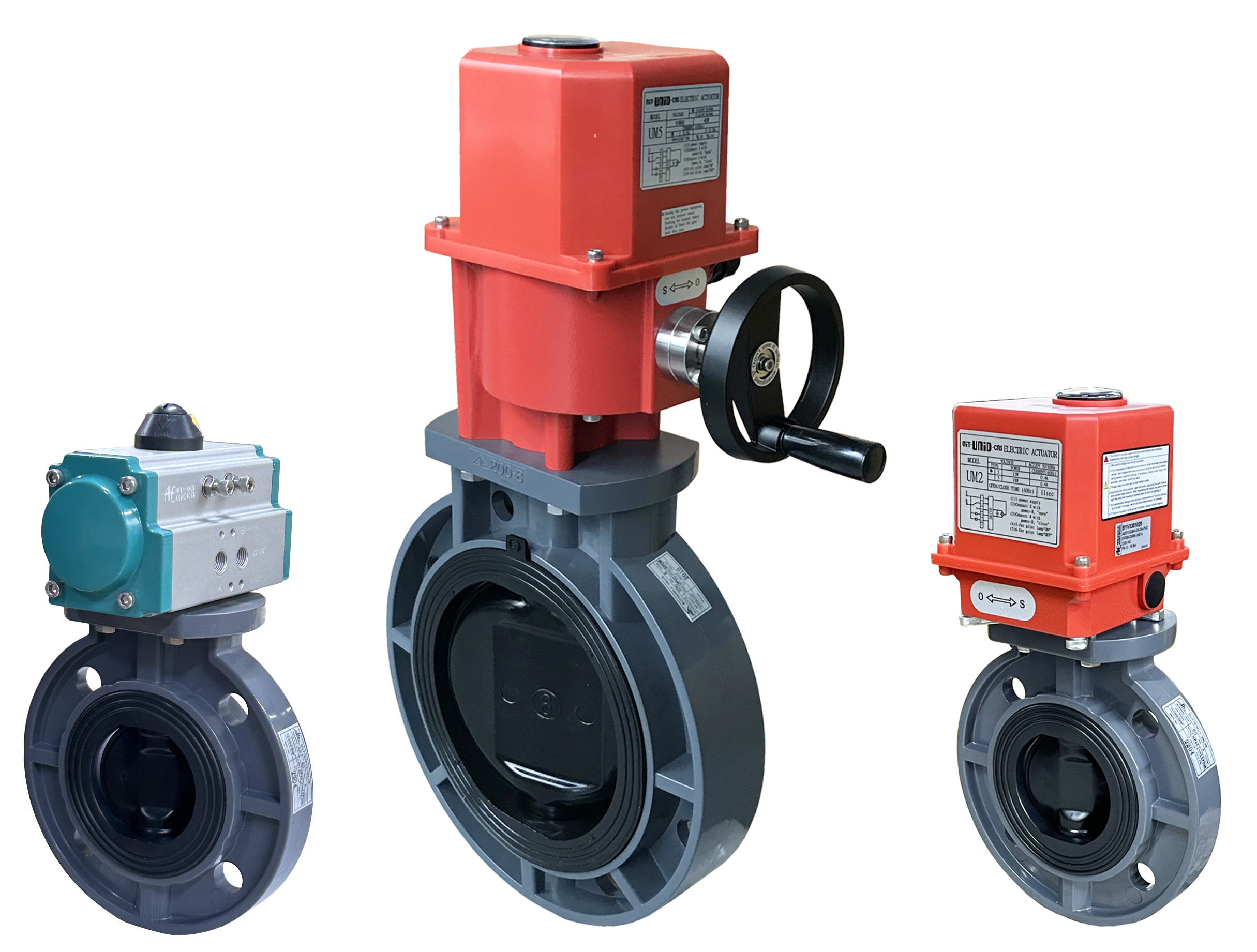

Bi-Directional Centric Plastic Butterfly Valves

  • FIP FE uPVC butterfly valve
  • For shut off or flow regulation
  • Wafer pattern through shaft design (Lug version on request)
  • Stem completety isolated from fluid
  • Manually operated by lever or retrofitted with pneumatic or electric actuator for automated process application
  • DN40 to DN200
  • PN16 (DN40 to DN50), PN10 (DN65 to DN200) with water at 20ÂșC
  • Suitable for mounting between DIN and ASTM flanges
  • uPVC valve material with EPDM seat (other material on request)
  • Pneumatic actuator available in double acting or spring return version with wide range of accessories including E/P positioner, limit switch box, declutchable manual override and pilot solenoid valve
  • Electric actuator available in on/off or modulating control version with nylon (PA6) / aluminum alloy casing and built in manual override

AE BYV338 Plastic Butterfly Valve Catalogue
