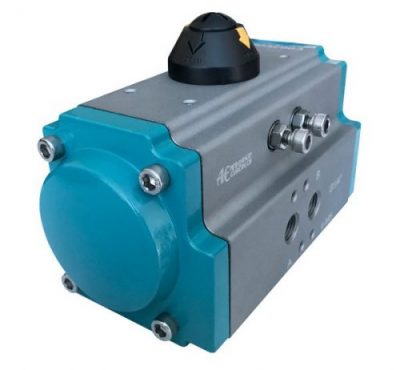

• Rack and pinion design rotary quarter turn pneumatic actuator
• Double Acting or Spring Return Version
• ISO5211, DIN3337 and Namur interfaces for easy mounting to valve, limit switch box and positioner
• Suitable for indoor and outdoor application
• Torque output from 3Nm to 13,024Nm (DA version) and 4Nm to 6,584Nm (SR version)
• Aluminium alloy housing with nickel plated pinion
• Travel angle 90° with travel stop adjustment of ± 5℃
• Operating pressure from 2 bar up to 8 bar at temperature from -20℃ to +80℃

Pneumatic Actuator Catalogue
